280KW Diesel Generator Set with WEICHAI WP10D320E200 Engine and ISO 9001:14000, CE Certification
Product Description
350KVA Generator Set with WEICHAI Engine WP10D320E200 - Silent Type Diesel Generator
Product Features
- Full control panel with power indicator light and oil light
- Emergency shutdown for low oil pressure and high water temperature
- Large fuel tank ensures continuous running
- Low noise & vibration operation
- Compact structure design
- Reliable performance
- Easy installation and maintenance
Painting Process
Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.
Generator Specifications
| Model | MB-280 |
| Output Power | 280KW/350KVA |
| Power Factor | COSΦ=0.8 (lagging) |
| Maximum Output Current | 504A |
| Weight | 2100kg (Net) |
| Dimensions | 3050 * 1040 * 1550mm |
| Voltage | 400/230V |
| Frequency | 50Hz |
Diesel Engine Specifications
| Manufacturer | Weichai Diesel Engine |
| Model | WP10D320E200 |
| Rotate Speed | 1500RPM |
| Power | 320KW |
| Fuel Consumption | ≤ 210g/kw.h |
| Cylinder/Stroke | 126 * 130 mm |
| Compression Ratio | 17:1 |
| Displacement | 9.726L |
| Configuration | 6-cylinder in-line, four-stroke, water-to-air cooling |
| Cooling Mode | Liquid Cooled |
| Speed Control System | Electronic |
| Starting Mode | 24V DC |
| Filter System | Dry air filter, fuel filter, oil filter |
Alternator Specifications
| Manufacturer | LEROY-SOMER Alternator |
| Model | TAL-A46-G |
| Voltage Control Mode | AVR (automatic voltage regulation) |
| Voltage Regulation | ±1% |
| Rated Voltage/Frequency/Power Factors | 400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire |
| Steady State Frequency | Better than 5% |
| No-load Voltage Adjust Range | ≥95% - 105% |
| Insulation Class/Protection Class | H / IP22 |
| Excitation Type | Brushless |
Product Images

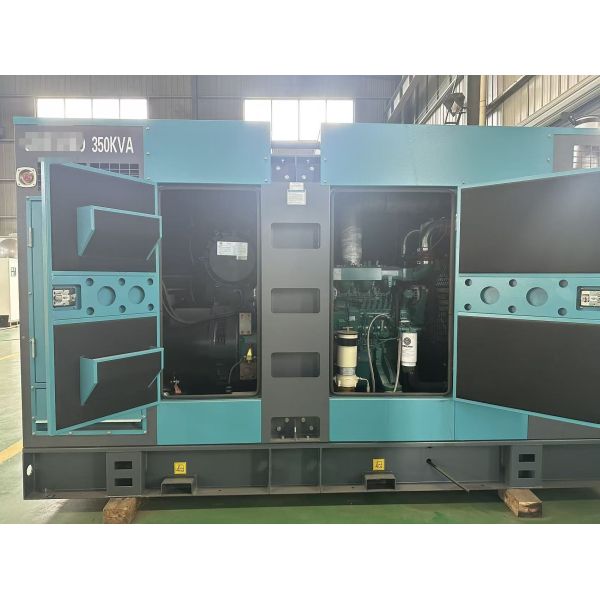

350KVA Weichai Diesel Generator Set
Side view of 350KVA Silent Diesel Generator
Control panel of 350KVA Generator Set
Power Range Comparison
| Rated Power | Engine | Alternator | Control Panel |
| 24kw~1500kw | Cummins | Stamford, Leroy somer, Marathon, Mecc alte, ABB, Chinese alternators | Deepsea, ComAp, Harsen, Smartgen |
| 36kw~1800kw | Perkins | | |
| 68kw~560kw | Volvo | | |
| 20kw~200kw | Deutz | | |
| 40kw-2200kw | Yuchai | | |
| 50kw-2200kw | Weichai | | |
| 540kw-1900kw | Mitsubishi | | |
| 50kw-800kw | SDEC | | |
| 650kw~2200kw | Chinese engine | | |
About Our Factory
Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.
Our factory features CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.
Yangdong Engine Prime Power 800kw Diesel Generator Set
Factory production line of diesel generators
For more details about our diesel generator sets, please contact us anytime. Your further inquiries are welcome!
